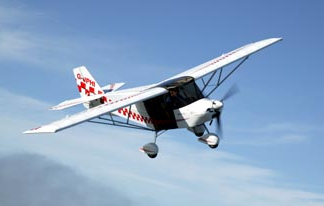

Volksflugzeug SkyRanger SW >Prospekt SkyRanger SW
Volksflugzeug SkyRanger SW Specification
Maximum Take Off Weight LSA 560,0 kg Maximum Take Off Weight UL 472,5 kg Empty Weight 240 - 280 kg Payload 212 - 310 kg Wing Aera 13,0 m² Wing Span 8,8 m mit Wingtips Max Chord 1,8 m Length Overall 5 ,8 m Fuselage Width 1,2 m Teil Span 2,52 m Height Overall 2,4 m Height to Cabin Top 1,76 m
Volksflugzeug SkyRanger SW Performance
Unser Flugzeug SkyRanger SW hat sehr ausgewogene und gutmütige Eigenschaften ohne irgendwelche Besonderheiten. Bedingt durch die kurze Tragfläche ist unser Flugzeug besonders wendig und einfach zu hangarieren.
Modell
Motor
SkyRanger SW 625
(Sauer S625R- 65Hp)
SkyRanger SW 950
(Sauer S950R- 100Hp)
Schlepp, bis 750 kg
SkyRanger SW 1900
(Sauer S1900UL-70Hp)
VNE
128mph / 206kmh
128mph / 206kmh
128mph / 206kmh
Max Level Speed
110mph / 175kmh
120mph / 200kmh
112 mph / 180kmh
Cruise Speed
85mph / 140kmh (10l/hr)
90mph / 150kmh (12l/hr)
85mph / 140kmh (10l/hr)
Stall Speed
38mph / 60kmh
38mph / 60kmh
38mph / 60kmh
Max Climb Rate
700ft/min / 3,5m/s
1200ft/min / 6m/s
700ft/min / 3,5m/s
Min Sink Rate
500ft/min at 58mph
500ft/min at 58mph
500ft/min at 58mph
Best Glide Ratio
500ft/min at 58mph (10)
500ft/min at 58mph (10)
500ft/min at 58mph (10)
Take-off distance
130 m
80 m
140 m
Landing distance
180m
180m
180m
Range at Cruise Speed
450 miles
400 miles
500 miles
Empty Weight
240kg
250kg
260kg
Max Weight
472,5kg UL
472,5kg UL / 560kg LSA
472,5kg UL
Payload
232,5kg
222,50kg / 310kg
212,50kg
Best Climb Speed
58mph / 93kmh
58mph / 93kmh
58mph / 93kmh
Max. Speed in Turbolence
75mph / 120kmh
75mph / 120kmh
75mph / 120kmh
Max. Speed with flaps
75mph / 120kmh
75mph / 120kmh
75mph / 120kmh
Max. crosswind
20mph / 30kmh
20mph / 30 kmh
20mph / 30 kmh
Safe Load
+4 / -2 g
+4 / -2 g
+4 / -2 g
Breaking Load
+6 /-4 g
+6 / -4 g
+6 / -4 g
Modell Motor | SkyRanger SW 625 (Sauer S625R- 65Hp) | SkyRanger SW 950 (Sauer S950R- 100Hp) Schlepp, bis 750 kg | SkyRanger SW 1900 (Sauer S1900UL-70Hp) |
VNE | 128mph / 206kmh | 128mph / 206kmh | 128mph / 206kmh |
Max Level Speed | 110mph / 175kmh | 120mph / 200kmh | 112 mph / 180kmh |
Cruise Speed | 85mph / 140kmh (10l/hr) | 90mph / 150kmh (12l/hr) | 85mph / 140kmh (10l/hr) |
Stall Speed | 38mph / 60kmh | 38mph / 60kmh | 38mph / 60kmh |
Max Climb Rate | 700ft/min / 3,5m/s | 1200ft/min / 6m/s | 700ft/min / 3,5m/s |
Min Sink Rate | 500ft/min at 58mph | 500ft/min at 58mph | 500ft/min at 58mph |
Best Glide Ratio | 500ft/min at 58mph (10) | 500ft/min at 58mph (10) | 500ft/min at 58mph (10) |
Take-off distance | 130 m | 80 m | 140 m |
Landing distance | 180m | 180m | 180m |
Range at Cruise Speed | 450 miles | 400 miles | 500 miles |
Empty Weight | 240kg | 250kg | 260kg |
Max Weight | 472,5kg UL | 472,5kg UL / 560kg LSA | 472,5kg UL |
Payload | 232,5kg | 222,50kg / 310kg | 212,50kg |
Best Climb Speed | 58mph / 93kmh | 58mph / 93kmh | 58mph / 93kmh |
Max. Speed in Turbolence | 75mph / 120kmh | 75mph / 120kmh | 75mph / 120kmh |
Max. Speed with flaps | 75mph / 120kmh | 75mph / 120kmh | 75mph / 120kmh |
Max. crosswind | 20mph / 30kmh | 20mph / 30 kmh | 20mph / 30 kmh |
Safe Load | +4 / -2 g | +4 / -2 g | +4 / -2 g |
Breaking Load | +6 /-4 g | +6 / -4 g | +6 / -4 g |
